High Reliability Rf Power Coupler , Low Frequency Directional Coupler

Name: High Reliability Rf Power Coupler Low Frequency Directional Coupler
Brand: Sinoscite
Price: 1 USD

Brand Name : Sinoscite

Model Number : SNSD-310-00306

MOQ : 1 Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Place of Origin : Sichuan, China

Certification : ISO 9001:2015

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Delivery Time : Less than 4weeks

Supply Ability : 2000 Piece per month

Price : Negotiable

operating frequency : 0.38-6GHz

flatness : ±1.0dB

Insertion loss : 1.25dB

directivity : 15dB

Outline Dimension : 13.97*1.27*1.778

product name : Rf Directional Coupler

Contact Now

Factory Price RF Directional Coupler Low Frequency Directional Coupler

1 Usage:

Mobile Communication Network Optimization and Indoor distribution system.
Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
Radar, Electronic Navagation and Electronic Confrontation.
Aerospace Equipment systems.

2 Advantages

Low VSWR,

High isolation

Low PIM

Multi-Band Frequency Coverage

Low Cost Design, Design to Cost

High Reliability and Maintenance free

Multiple IP Degree Conditions

RoHS Compliant

Custom Designs Available

Rf Directional Coupler

3 SPECIFICATIONS

Model	Working Freq.(GHz)	Coupling (dB)	Flatness (dB)	Insertion Loss(dB)	VSWR	Coupling port VSWR	Directivity (dB)(dB)	Dimension *LWH(CM)*
SNSD-330-00420	0.4-20	30±0.8	±1.1	1.5	1.5	1.2	14	13.971.271.778
SNSD-330-00508	0.5-8	30±0.5	±0.7	1.3	1.3	0.7	20	11.1761.271.778
SNSD-330-00526	0.5-26.5	30±0.8	±0.9	1.4	1.5	1.4	14	11.1761.271.778
SNSD-330-06026	6-26.5	30±0.5	±0.6	1.5	1.5	0.6	14	3.1751.271.6002
SNSD-330-06040	6-40	30±0.7	±0.9	1.7	1.7	1.2	12	3.1751.271.6002
SNSD-330-18026	18-26.5	30±0.4	±0.4	1.4	1.4	0.7	14	3.1751.271.6002
SNSD-330-18040	18-40	30±0.5	±0.7	1.7	1.7	1	12	3.1751.271.6002

4 About Company

Chengdu Sinoscite Technology Co., Ltd. is an international advocate of innovation in microwave and millimeter wave fields. The company has long been dedicated to the professional design,production and sales of high-end microwave and millimeter wave devices and systems.

The company focuses on providing customized / specialized solutions to customers.Sinoscite pays attention to the development and protection of independent intellectual property rights. The company has more than 40 invention patents, 160 utility model patents and more than 100 invention patents under examination and approval. The company has more than 30 full-time research and development teams with bachelor's, master's and doctor's degrees.Sinoscite technology and products cover a frequency range of 0.2 GHz to 220 GHz, mainly including various microwave and millimeter waves, terahertz filters, multiplexers, directional couplers, waveguide calibration components, etc.

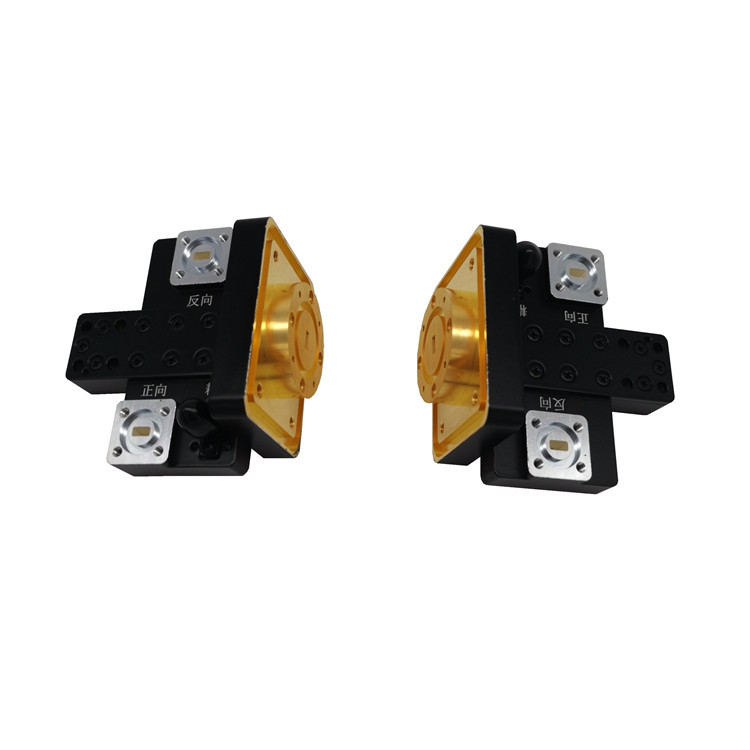

5 Picture

6 FAQ

Q. How about the MOQ?
A: Generally,the trail order will be accepted. The MOQ can be confirmed according to the different products.

Q. What are the advantages of your product?
A. Every part has different advantage, but here are some basic advantages, such as: low insertion loss, low VSWR.

Q: Are you a manufacturer?
A: Yes , we are a manufacturer, not agent. We have own factory, which is located in Sichuan,CHINA.
