25.2 GHz RF Cavity Filter Preventing Signals At Unwanted Frequencies

Name: 252 GHz RF Cavity Filter Preventing Signals At Unwanted Frequencies
Brand: Sinoscite
Price: 1 USD

China 25.2 GHz RF Cavity Filter Preventing Signals At Unwanted Frequencies wholesale

Brand Name : Sinoscite

Model Number : BPF23.6-25.2GK-3156

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Pass Band Range : 23.6-25.2GHz

3dB Bandwidth : ≥1.6GHz

Center Insertion Loss : ≤2dB

Rejection : ≥35dBc@20.4GHz&28.4GHz

VSWR : ≤1.36

Operating Temperature : 0℃~+60℃

Storage Temperature : -40℃~+70℃

Material : Aluminum Alloy

Exterior Color : Paint Black

Interface : 2.92—K

Contact Now

23.6 - 25.2 GHz Preventing Signals At Unwanted Frequencies RF Cavity Filter

1	Product Type	Bandpass Filter
2	Model	BPF23.6-25.2GK-3156
3	Passband Frequency	23.6-25.2GHz
4	3dB Bandwidth	≥1.6GHz
5	Center Insertion Loss	≤2dB
6	Rejection	≥35dBc@20.4GHz&28.4GHz
7	VSWR	≤1.36
8	Operating Temperature	0℃~+60℃
9	Storage Temperature	-40℃~+70℃
10	Material	Aluminum Alloy
11	Exterior Color	Paint Black
12	Interface	2.92—K
13	Impedance	50Ω

Product Details

In a receiver, a bandpass filter allows signals within a selected range of frequencies to be heard or decoded, while preventing signals at unwanted frequencies from getting through. Signals at frequencies outside the band which the receiver is tuned at, can either saturate or damage the receiver.

25.2 GHz RF Cavity Filter Preventing Signals At Unwanted Frequencies

Product Tags:

25.2 RF Cavity Filter

2dB RF Cavity Filter

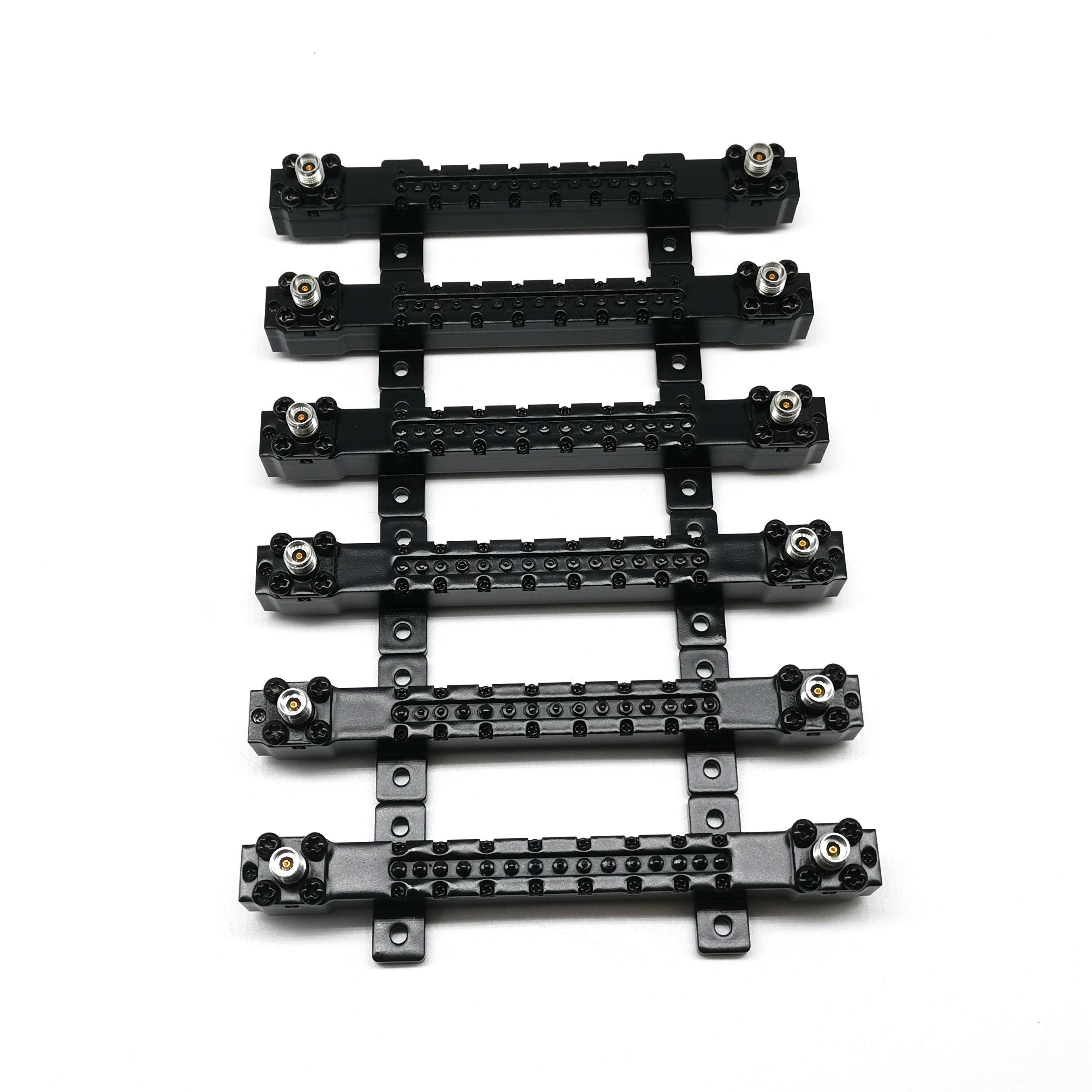

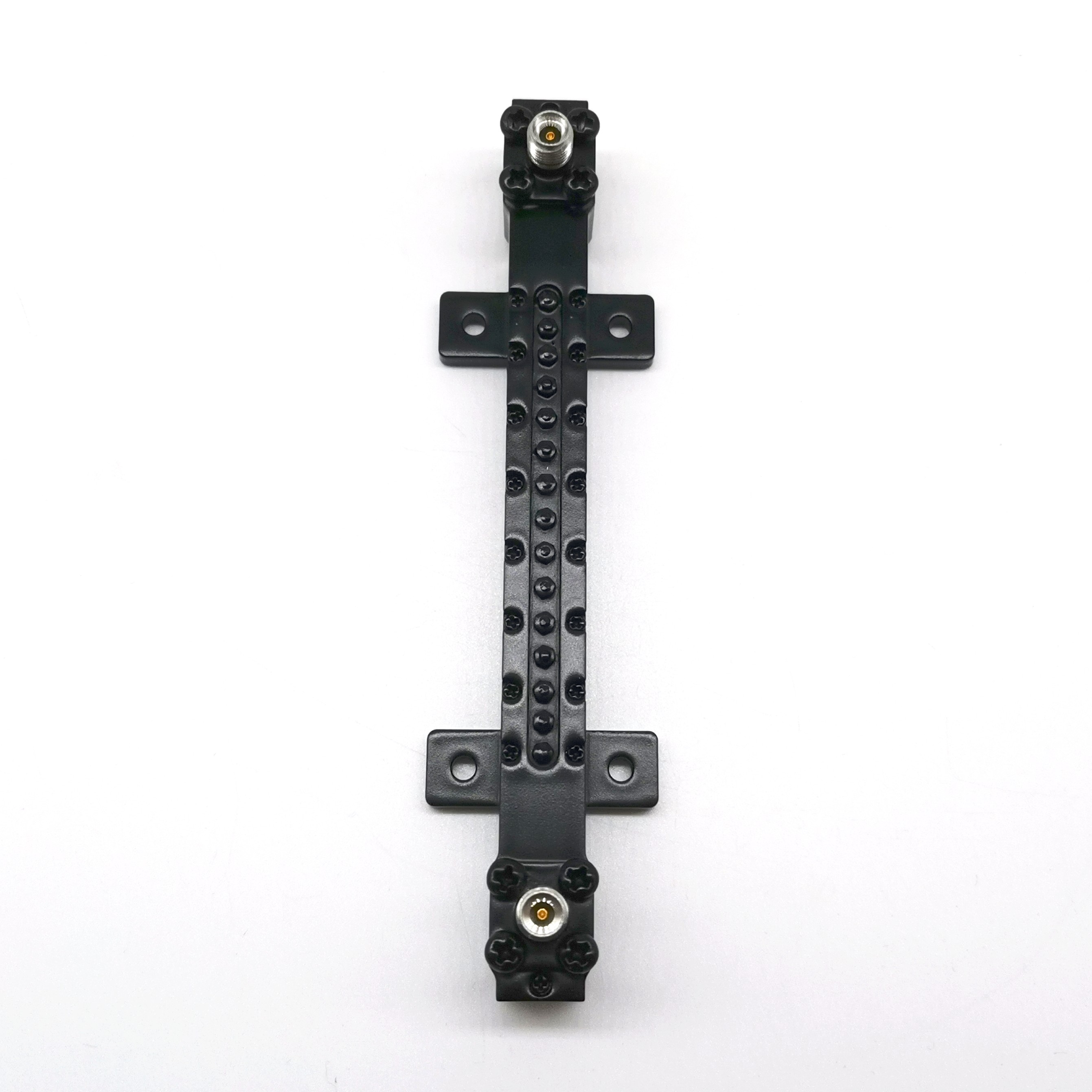

25.2 GHz RF Cavity Filter Preventing Signals At Unwanted Frequencies Images
