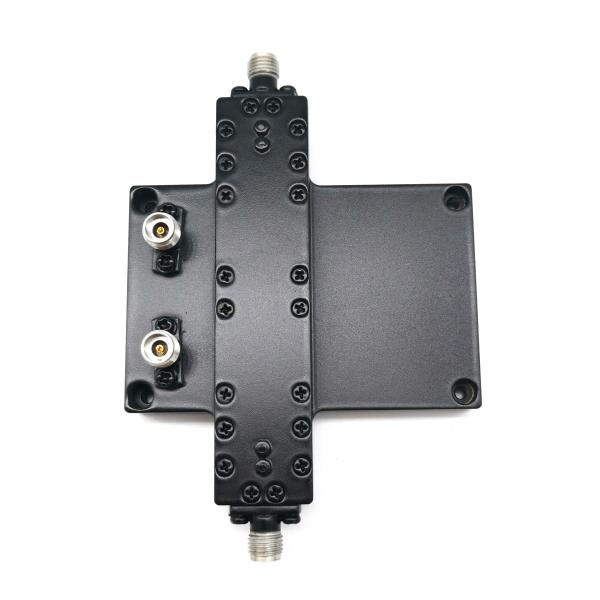

Passive Devices 15dB RF Directional Coupler For Radio Technology

Name: Passive Devices 15dB RF Directional Coupler For Radio Technology
Brand: Sinoscite
Price: 1 USD

China Passive Devices 15dB RF Directional Coupler For Radio Technology wholesale

Brand Name : Sinoscite

Model Number : CP17.7-21GS-3150

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : 4 weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Operation frequency : 17.7-23.55GHz

Insertion loss : ≤1.1dB

In-Band Fluctuation : ≤0.5dB

Coupling : 20±1.5dB

Coupling Consistency : ≤±0.8dB

Directionality : ≥15dB

Input And Output VSWR : ≤1.4

Coupled Port VSWR : ≤1.5

Contact Now

Passive Devices RF Coupler Used In The Field Of Radio Technology

Quick Details of RF Directional Coupler

1	Product Type	Coupler
2	Model	CP17.7-21GS-3150
3	Working Frequency	17.7-23.55GHz
4	Insertion Loss	≤1.1dB
5	In-Band Fluctuation	≤0.5dB
6	Coupling	20±1.5dB
7	Coupling Consistency	≤±0.8dB
8	Directionality	≥15dB
9	Input And Output VSWR	≤1.4
10	Coupled Port VSWR	≤1.5
11	Input And Output Interface	Coaxial (2.92-K)
12	Coupling Port Output	Coaxial (2.92-K)
13	Material	Brass silver plated
14	Surface Treatment	Black paint

A directional coupler which can adjust a degree of coupling easily and by comparatively low cost is provided. A directional coupler has a substrate, a 1st transmission line formed on the substrate, a 2nd transmission line formed on the substrate, and a coupling substrate provided with a 3rd transmission line and a 4th transmission line which form a coupling part. The coupling substrate is attached to the substrate so that the coupling part may be inserted in the 1st transmission line and 2nd transmission line.

FAQ

1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
5.We have sufficient goods,competitive price,good quality and one year warranty of our goods.
6.W e are a leading manufacturer and exporter in China. We have good service, fast delivery and Express, accept T/T ,Western Union payment terms.
7.OEM & ODM services are offered, for OEM, we can design the packing box and LOGO mark as your require.
8.We have a lot of orders from the United States, Europe and other places every year. Our products are very popular in domestic and foreign.
Warranty and return :
1. All products accessories have been checked for 3 times before shipping out.
2. All products have one year warranty. If there is no man-made problems,we will replace or repair for you.
